Three in one unwinding and straightening machine offset feeder

Three in one unwinding and straightening machine offset feeder
Three in one unwinding and straightening machine offset feederThree in one unwinding and straightening machine offset feederThree in one unwinding and straightening machine offset feederThree in one unwinding and straightening machine offset feeder
group name
Decoiler Straightener Feeder
Min Order
1 piece
brand name
Chance Move Machinery Manufacturer
model
GLK-P
Nearest port for product export
Shenzhen, Shanghai
Delivery clauses under the trade mode
FOB, CFR, CIF, EXW
Acceptable payment methods
T/T, L/C, PayPal, Westem Union
update time
Sat, 05 Apr 2025 00:18:06 GMT

Packging & Delivery

  • Min Order1 piece

Briefing

Offset three-in-one servo leveling feeder with high efficiency punching disc.

Detailed

Product Description

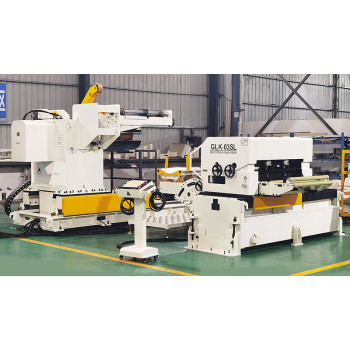

Zigzag type 3 in 1 decoiler straightener feeder
Product Features
The electronic numerical control automatic left-right offset blanking and blanking production line adopts double-shaft alternating feeding, has simple numerical control and control, saves the coiling cost compared with the traditional feeding and blanking machine, and has automatic operation flow from coiling feeding, uncoiling, automatic offset feeding, blanking and automatic output, thus completing consistent continuous operation and improving productivity quality and production efficiency.
The machine consists of a feeding trolley, a hydraulic uncoiler and a precision leveling feeder.
The offset three-in-one servo leveling feeder has the functions of high-efficiency wafer punching and material utilization rate saving. It can be used to uncoil, level, shift left and right, punch the lower circle and other plates of various rolled plate materials. It is an indispensable high-efficiency processing line for metal plate processing wafer blanking. A material stacking system can be added behind the unit to collect the lower wafers into stacks.
SPECIFICATION PARAMETER
Model
GLK2-600P
GLK2-800P
GLK2-1000P
GLK2-1200P
GLK2-1300P
Width of material (mm)
50-600
50-800
100-1000
100-1200
100-1300
Thickness of material (mm)
0.5-2.2
Coil I.D.(mm)
Φ508
Coil O.D.(mm)
Φ1400
Expansion
Hydraulic rod type
Max.Coil Weight(kg)
3000
5000
8000
8000
8000
Working Rollers
6 on top/5 on bottom
Pinch Rollers
1 on top/1 on bottom
 Feeding Rollers
1 on top/1 on bottom
Correction accuracy
1.5mm/m²
Operating air(Mpa)
0.5
Servo motor (kw)
AC2.9
Subject to actual negotiation
Feed offset servo motor (kw)
AC5.5
Rack offset servo motor (kw)
AC5.5
Rack motor (kw)
AC1.5
