RNC-H Compare thick material servo roll feeder（0.5-4.5mm）
- group name
- Feeder
- Min Order
- 1 piece
- brand name
- Chance Move Machinery Manufacturer
- model
- RNC-H
- Nearest port for product export
- Shenzhen, Shanghai
- Delivery clauses under the trade mode
- FOB, CFR, CIF, EXW
- Acceptable payment methods
- T/T, L/C, PayPal, Westem Union
- update time
- Thu, 19 May 2022 11:40:18 GMT
Packging & Delivery
-
Min Order1 piece
Briefing
Models designed for strong and thick plate materials reflect the superior quality of thick plates.
Detailed
Product Description
RNC-H Servo Feeder Machine (0.5-6.0mm)
Product Features
1.The model designed for strong and thick plate materials shows excellent quality in the due aspects of thick plates.
2.It has two groups of feeding rollers to effectively prevent material from slipping.
3.Through secondary transmission, the feeding intensity of the feeder is strengthened.
OPTION ACCESSORY：
Feedmaster device
Feed length memory module
Counter setting device
Programable feeding length/speed device
Material end stop device
Programable feeding forward/reverse device
Feedingmangle selection device
Material lubrication system device
Syntheric rubber cpater roll
SPECIFICATION PARAMETER
|
Model
|
RNC-300H
|
RNC-400H
|
RNC-500H
|
RNC-600H |
|
Width of material (mm)
|
300
|
400
|
500
|
600 |
|
Thickness of material (mm)
|
0.5-6.0
|
|||
|
Max.feed length (mm)
|
9999.99
|
|||
Feed accuracy (mm) | ±0.2 | |||
Feed Roll | Upper Roll Ø90mm, Bottom Roll Ø90mm | |||
Speed (m/min) | 20 | |||
Releasing system | Pneumatic Type | |||
Servo Motor | Yaskawa, Japan | |||
Servo Drive | Yaskawa, Japan | |||
PLC | Mitsubishi, Japan | |||
Touch Screen | Weinview, Taiwan | |||
Power | 1.8kw | 2.9kw | ||

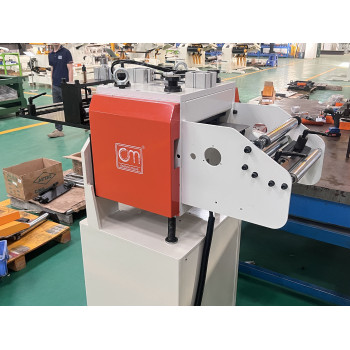

Product Display
