Left and right offset feeder

group name: Feeder

Min Order: 1 piece

brand name: Chance Move Machinery Manufacturer

model: NCP

Nearest port for product export: Shenzhen, Shanghai

Delivery clauses under the trade mode: FOB, CFR, CIF, EXW

Acceptable payment methods: T/T, L/C, PayPal, Westem Union

update time: Sat, 20 Apr 2024 18:30:43 GMT

contact supplier

Packging & Delivery

Min Order1 piece

Briefing

The deflection movement and feeding are completed simultaneously.
It can save more than 1/5 of material (single step offset).

Detailed

Product Description

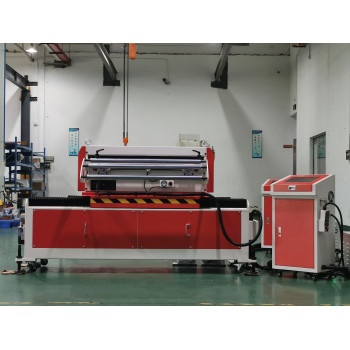

NCP Left and right offset feeder

Product Features

1.This machine is suitable for the processing of symmetrical alternative forms.Material saving (single step migration) more than 1/5.

2.Offset sliding adopts high speed linear bearing, guide brother through special treatment, no noise, high wear resistance, low load friction, smooth moving speed.

SPECIFICATION PARAMETER

Model	NCP-200	NCP-300	NCP-400	NCP-500	NCP-600	NCP-800
Coil Width(mm)	200	300	400	500	600	800
Thickness of material(mm)	0.2-2.0
Releasing system	Pneumatic Type Releasing System
Feed Roller	Upper Roll 1pc, Bottom Roll 1pc
Feeding Length(mm)	Max. 9999.99
Feeding Speed	Feeding Speed Max. 20 m/min, Zigzag Movement Speed Max. 30 m/min
Left Center Displacement (mm)	100	150	200	250	300	400
Feeding Accuracy(mm)	± 0.01
