Uncoiler and straightener two in one
- group name
- Decoiler Straightener
- Min Order
- 1 piece
- brand name
- Chance Move Machinery Manufacturer
- model
- GL-H
- Nearest port for product export
- Shenzhen, Shanghai
- Delivery clauses under the trade mode
- FOB, CFR, CIF, EXW
- Acceptable payment methods
- T/T, L/C, PayPal, Westem Union
- update time
- Mon, 22 Jan 2024 20:56:35 GMT
Packging & Delivery
-
Min Order1 piece
Briefing
Uncoiling and straightening of sheet coils with a thickness of 0.5mm to 4.5mm.
Detailed
Product Description

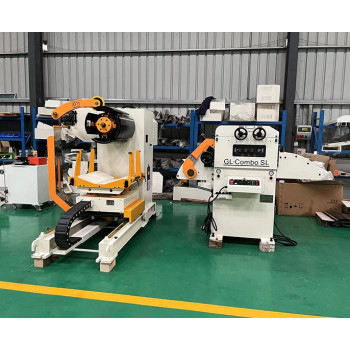

GL-H Uncoiler and straightener two in one
1.Decoiler Shaft
2.Pressing Arm
3.Coil Supporting Arm
4.Inlet Arm
5.Straightening Part
6.Coil Outlet
7.Control Panel
8.Induction Sensor
9.Hydraulic Station
SPECIFICATION PARAMETER
|
Model
|
GL-300H | GL-400H |
GL-500H
|
GL-600H
|
GL-800H
|
Max. Coil Width（mm） | 300 | 70-600 | 70-800 | 70-800 | 70-1300 |
Thickness of Material（mm） | 0.5-4.5 | ||||
Coil I.D.(mm) | 460-520 | ||||
|
Coil O.D.(mm)
|
1200 |
||||
|
Coil Weight(kg)
|
2000 | 2000 |
3000
|
5000
|
5000 |
|
Working Rollers
|
Ø68mm*7pcs |
||||
Uncoil Motor | 1.5 Kw | ||||
Uncoil Expansion | Manual Expansion (Hydraulic for optional) | Hydraulic Expansion | |||
Pressing Arm | Option | ||||
Levelling Motor | 2.2 Kw | 2.2 Kw | 4.4 Kw | 4.4 Kw | 5.5 Kw |
Levelling Adjustment | Eccentric turbine worm adjusting | ||||
Feeding Speed | 15m/min | ||||
