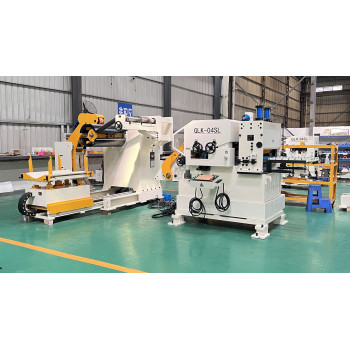

Special for medium plate type 3-in-1 servo decoiler straightener feeder machine

Special for medium plate type 3-in-1 servo decoiler straightener feeder machine
Special for medium plate type 3-in-1 servo decoiler straightener feeder machineSpecial for medium plate type 3-in-1 servo decoiler straightener feeder machineSpecial for medium plate type 3-in-1 servo decoiler straightener feeder machineSpecial for medium plate type 3-in-1 servo decoiler straightener feeder machineSpecial for medium plate type 3-in-1 servo decoiler straightener feeder machine
group name
Decoiler Straightener Feeder
Min Order
1 piece
brand name
Chance Move Machinery Manufacturer
model
GLK4
Nearest port for product export
Shenzhen, Shanghai
Delivery clauses under the trade mode
FOB, CFR, CIF, EXW
Acceptable payment methods
T/T, L/C, PayPal, Westem Union
update time
Fri, 29 Mar 2024 09:57:10 GMT

Packging & Delivery

  • Min Order1 piece

Briefing

Adopt man-machine interface, simple operation and convenient feeding.

Detailed

Product Description
Special for medium plate type 3-in-1 servo decoiler straightener feeder machine

Product Features

1.Working space will be minimized by innovative structure of the machine.


2.The operation panel adopts color liquid crystal display, large size touch screen, high clear operation picture, and operation safety system, so that even first-time users can operate at ease.


3.Sound operating system user-friendly design will shorten the preparatory work and advanced automatic diagnosis system, to help operators quickly control the outstanding performance of the machine.


4.Imported servo system and ensures high precision feeding.


5.Feeding roller and leveling roller by special heat treatment, high hardness ( HRC62 °) wear resistance, long service life.


6.Specially designed for the strong thick plate up and down leveling back up roller set, can achieve the guaranteed stress elimination effect.


7.The design concept of doubling the safety factor can prolong the safe service life of the equipment.


8.Various options are available for different sizes of punching machines and operational requirements.Special standard is also accepted.

1.Coil Car

The hoisting machine main shaft expansion and contraction structure is smoothly moved to the fixed waiting coil car, and the loading coil car is fixed and does not move.The material frame moves up and then returns to the original position for normal operation.

2.Decoiler Mandrel

The material frame is moved to the trolley and returned to the original position, and the material is required to make the gap rotation and discharge according to the requirements.

3.Pressing Arm

During the operation, the material is compacted to prevent the material roll from scattering. During the automatic operation, the material pressing wheel will automatically adjust the speed along with the change of the outer diameter of the material, so that the linear velocity of the material pressing wheel and the material roll is completely matched to prevent the material roll from scattering.

4.Coil Limiting Arms

Located on the left side of the material rack and used for positioning the width of the material roll, the outer roller can be opened to facilitate the material roll to enter the expansion and contraction mechanism, and the limit roller must be closed to perform the automatic operation function

5.Straightener Inlet

It is used to guide the material head to enter the leveling machine so that the material can smoothly enter the leveling device

6.Control Board
7.Straightening Part

The roller material is made of high quality bearing steel and hardened to achieve HRC60±2 hardness.

8.Handwheel

Correction amount adjustment with hand width adjustment, eccentric shaft end with dial for display

9.Outlet Support Bracket

It is used for the smooth transfer between the fixed feeding and the mold, and the high-quality imported wear-resistant Fulai wheel is installed on the supporting frame.

SPECIFICATION PARAMETER
Model
GLK04-600H
GLK04-800H
GLK04-1000H
GLK04-1300H
Width of Material(mm)
70-600
70-800
70-800
70-1300
Thickness of Material(mm)
0.6-6.0
Max Coil Weight(kg)
5000
5000/7000
7000
7000
Coil I.D(mm)
508
Max Coil O.D.(mm)
1400
Max Feeding  Length(mm)
~500※
Max.line Speed(m/min)
16-24
Working Rollers
5 on top / 4 on bottom
Feeding Rollers
1 Group
Main Motor(kw)
AC7.5
AC11
AC11
AC15
Uncoil Expansion
Hydraulic
Power(V)
2.2
2.2/3.7
3.7
3.7
Uncoil Motor(kw)
200/220
Operating Air (Mpa)
0.49
CORRECTION ABILITY
Model
GLK04-600H
GLK04-800H
GLK04-1000H
GLK04-1300H

Thickness(mm)


0.8~2.3


600


800


1000
1000
2.5
933
933
2.8
920
920
3.2
714
714
714
4.0
457
457
457
457
4.5
361
361
361
361
5.0
293
293
293
293
6.0
203
203
203
203

The above figures are the material having yield strength of 245N/mm² max

CORRECTION ABILITY
Model
GLK04-600H
GLK04-800H
GLK04-1000H
GLK04-1300H




Thickness(mm)




2.5
255
252
250
146
2.8
205
203
202
199
3.2
177
175
174
171
4.0
138
136
135
133
4.5
120
119
118
116
5.0
106
105
104
103
6.0
81
81
81
81

The above figures are the material having yield strength of 600N/mm² max

Application
GLK4-600 Yangzhou
GLK4-1600 Hebei
GLK4 Hebei
